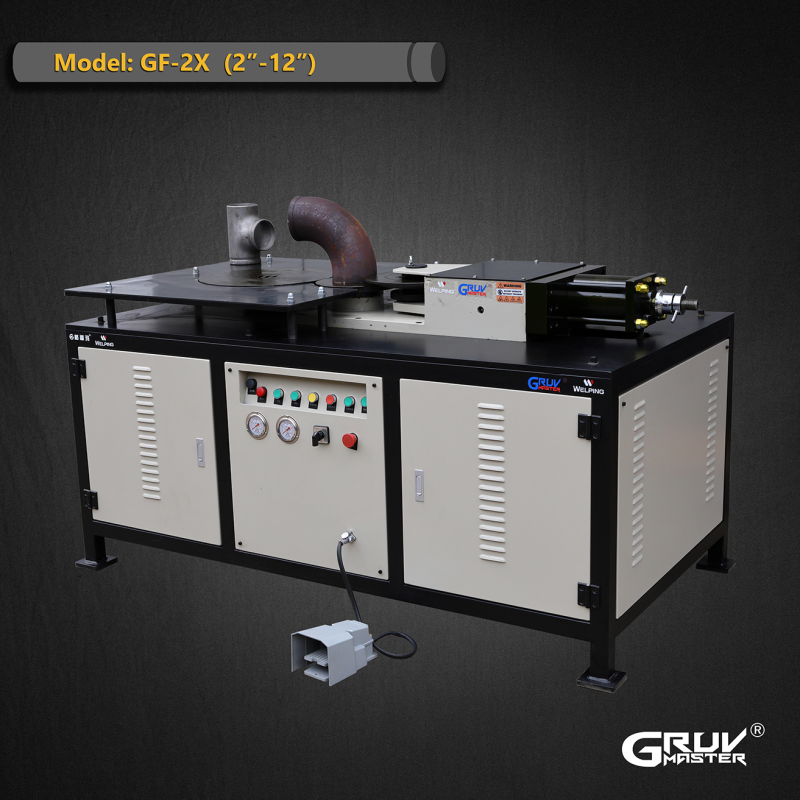

Hydraulic Steel Pipe Fitting Grooving Machine for 2" to 12" (GF-2X)
Hydraulic Steel Pipe Fitting Grooving Machine for 2" to 12" (GF-2X)
A specialized tool designed to create grooves on the ends of pipes and elbows, equal tees, reducing tees
- Categories
- Pipe Fitting Grooving Machine
- Brand
- Gruvmaster & Welping
- Model
- GF-2X
- Fabrication Capacity
- 2"-12"(DN25-DN200)SCH10/40 Steel Pipe
- Max Wall Thickness
- 10mm
- Output Speed
- 23RPM
- Power Supply
- 2200W
- Voltage
- 380V,50HZ, Three Phase
- FOB port
- Shanghai/Ningbo
- Terms of Payment
- L/C, D/A, D/P, Western Union
- Update Time
- Dec 31,2024
Detail Information
Pipe Fitting Grooving Machine Video
Features of Electric Hydraulic Pipe Fitting Grooving Machine
● A Pipe Fitting Grooving Machine is a specialized tool designed to create grooves on the ends of pipes or pipe fittings,such as elbows, equal tees, reducing tees, concentric and eccentric reducers etc., allowing secure connections with couplings or other fittings.
●It is commonly used in plumbing, fire protection systems, and industrial piping.
●Precision Grooving: Ensures accurate and consistent grooves for optimal fit and sealing.
●Versatile Application: Supports various pipe materials, including steel, stainless steel.
●Adjustable Settings: Accommodates different pipe diameters and groove specifications.
●Ease of Use: Ergonomic design with straightforward operation, suitable for workshop or on-site use.
●Durability: Built with robust materials to handle heavy-duty applications.
●Increases efficiency by reducing manual effort.
●Ensures strong, leak-proof connections.
●Compatible with various piping systems.
Pipe Fitting Grooving Machine Parameter
Model: | GF-2X |
Suitable materials: | Carbon Steel,SS Pipe |
Fabrication Capacity: | 2"-12" Pipe SCH10/SCH40 |
Power supply: | 380V |
Frequency: | 50HZ |
Max wall thickness: | 10mm |
Motor power: | 2200W |
Output speed: | 23RPM |
Packing gross weight: | 1080kgs |
Packing size: | 195*110*117cm |
Standard Parts of FG-2X Roll Groover
Item Number | Description | Net weight | ||||
911189 | Drive roller 2"-2½" (Φ60~Φ73) | 1.50kg | ||||
911090 | Drive roller 3"-3½" (Φ89~Φ101) | 2.00kg | ||||
911091 | Drive roller 4"-5" (Φ114~Φ141) | 1.20kg | ||||
911092 | Drive roller 6" (Φ168) | 3.00kg | ||||
911093 | Drive roller 8"-12" (Φ219-Φ325) | 3.00kg | ||||
912083 | Groove roller 2"-5" (Φ60~Φ141) | 14.00kg | ||||
912084 | Groove roller 6" (Φ168) | 14.00kg | ||||
912085 | Groove roller 8" -12" (Φ219-Φ325) | 13.50kg | ||||
998026 | Foot Switch | 1.50kg | ||||
Resources of GF-2X Roll Grooving Machine
Roll Grooving Machine Configuration
For 2-12inch
suitable for grooving processing of 2" ~ 12" elbows, equal tees, reducing tees, concentric and eccentric reducers etc. for grooved coupling installation
Unique hydraulic station
Unique hydraulic station and electrical operating system, ensure high-quality grooving capability and efficient work performance.
Grooved Fittings
The grooving machine processes pipes to enable seamless connections with fittings like elbows, tees, and reducers.
Versatility
Fitting Roll Groove Machine is designed to
form OGS (AWWA C606 standard)roll grooves on carbon steel and stainless steel pipe fittings
Foot Switch
Roller Set
Pipe Roll Grooving Machine Comparasion
