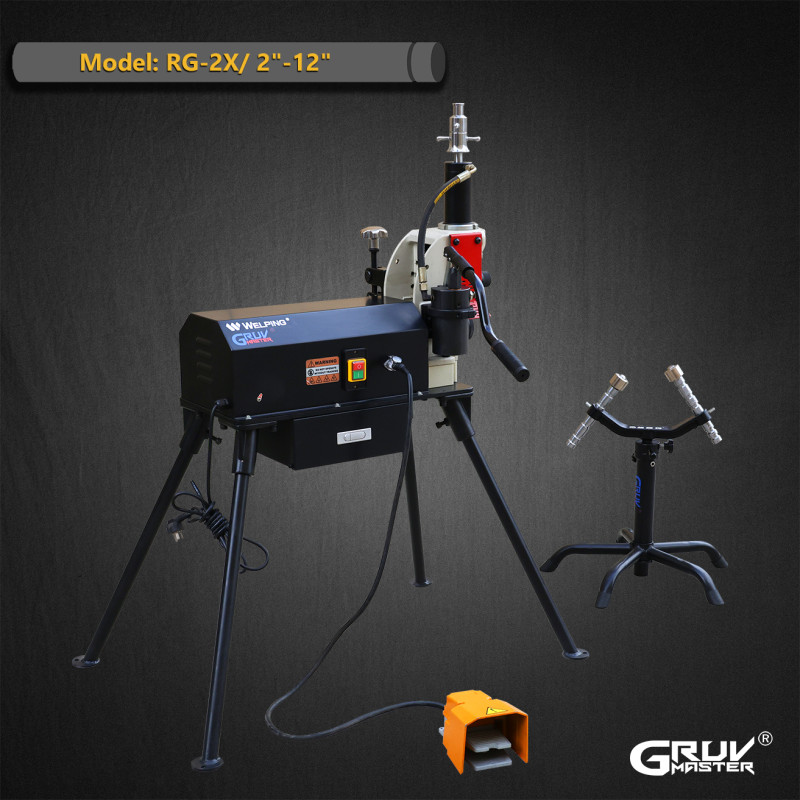

Heavy duty Electric Hydraulic Roll Groover Machine for Steel Pipe SCH10/SCH40 2"-12" (RG-2X)
Heavy duty Electric Hydraulic Roll Groover Machine for Steel Pipe SCH10/SCH40 2"-12" (RG-2X)
RG-2X roll grooving machine for 2 inch -12 inch steel pipe for heady duty work ,max 10mm wall thickness.
- Categories
- Electric Hydraulic Roll Groover
- Brand
- Gruvmaster & Welping
- Model
- RG-2X
- Fabrication Capacity
- 2"-12" SCH10/40
- Max Wall Thickness
- 10mm
- Output Speed
- 23RPM
- Power Supply
- 1100W
- Packing Size
- 82*47*88cm
- Gross Weight
- 130KG
- FOB port
- Shanghai/Ningbo
- Terms of Payment
- L/C, D/A, D/P, Western Union
- Update Time
- Dec 21,2024
Detail Information
Pipe Roll Grooving Machine Video
Features of Electric Hydraulic Roll Groover Machine
● Model RG-2X is specifically designed for rolling grooves on steel pipes and stainless steel on steel pipes and stainless steel from 2"-12" SCH10/SCH40.
● Ideal for a variety of daily tasks associated with fire-fighting pipe installation and maintenance, this roll groover is a flexible and efficient tool. Complete with a powerful motor, hydraulic feeding pump, convenient foot switch, and sturdy pipe stand, this tool is designed to handle a wide range of grooving needs with ease and precision.

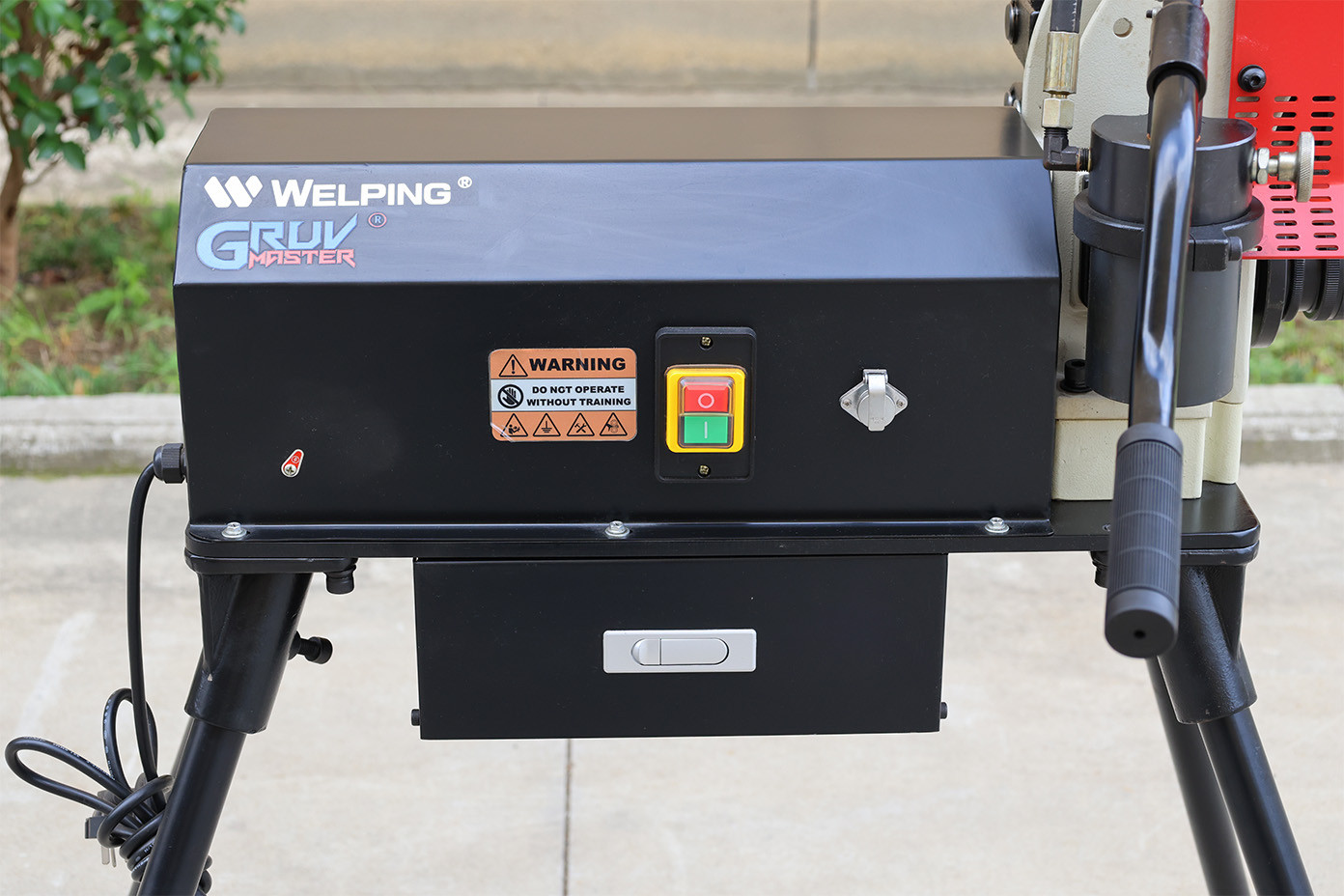

● The motor's integrated high-efficiency gear reduction system enables a sleeker, more streamlined design and reduced noise emissions.
● The unique combination of the hydraulic feeding pump and the groove depth lock knob guarantees premium grooves and optimal efficiency.
● The roll grooving machine is equipped with a frame and swivel wheels for easy movement and transport.
Pipe Roll Grooving Machine Parameter
Model: | RG-2X |
Suitable materials: | Carbon Steel,SS Pipe |
Fabrication Capacity: | 2"-12" Pipe SCH10/SCH40 |
Power supply: | 220V/110V |
Frequency: | 50HZ /60HZ |
Max wall thickness: | 10mm |
Motor power: | 1100W |
Output speed: | 23RPM |
Packing gross weight: | 130kgs |
Packing size: | 82*47*88cm |
Standard Parts of RG-2X Roll Groover
Item Number | Description | Net weight | ||||
911022 | Drive roller 2"-3"(φ60-φ89) | 1.30kg | ||||
911021 | Drive roller 3 1/2"-6"(φ101-φ168) | 1.30kg | ||||
911020 | Drive roller 8"-12" (φ219-φ325) | 1.40kg | ||||
912010 | Groove roller 2"-3"(φ60-φ89) | 0.45kg | ||||
912009 | Groove roller 3 1/2"-6"(φ101-φ168) | 0.45kg | ||||
912008 | Groove roller 8"-12" (φ219-φ325) | 0.45kg | ||||
998078 | Pipe stand | 6.90kg | ||||
998033 | Pipe Stabilizer | 2.80kg | ||||
998026 | Foot Switch | 1.50kg | ||||
Optional Parts of RG-2X Roll Groover
Item Number | Description | Net weight | ||||
912040 | Groove roller for SCH10 Anti-Flare (2"-3"） | 0.45kg | ||||
912039 | Groove roller for SCH10 Anti-Flare (3 1/2"-6"） | 0.45kg | ||||
912038 | Groove roller for SCH10 Anti-Flare (8"-12"） | 0.45kg | ||||
Resources of RG-2X Roll Grooving Machine
Roll Grooving Machine Configuration
Hydraulic pump
High quality seal parts ensure long-term field usage without leaking
Fine-machined cylinder with accurate sizes
Proper-hardened piston rod of long-life

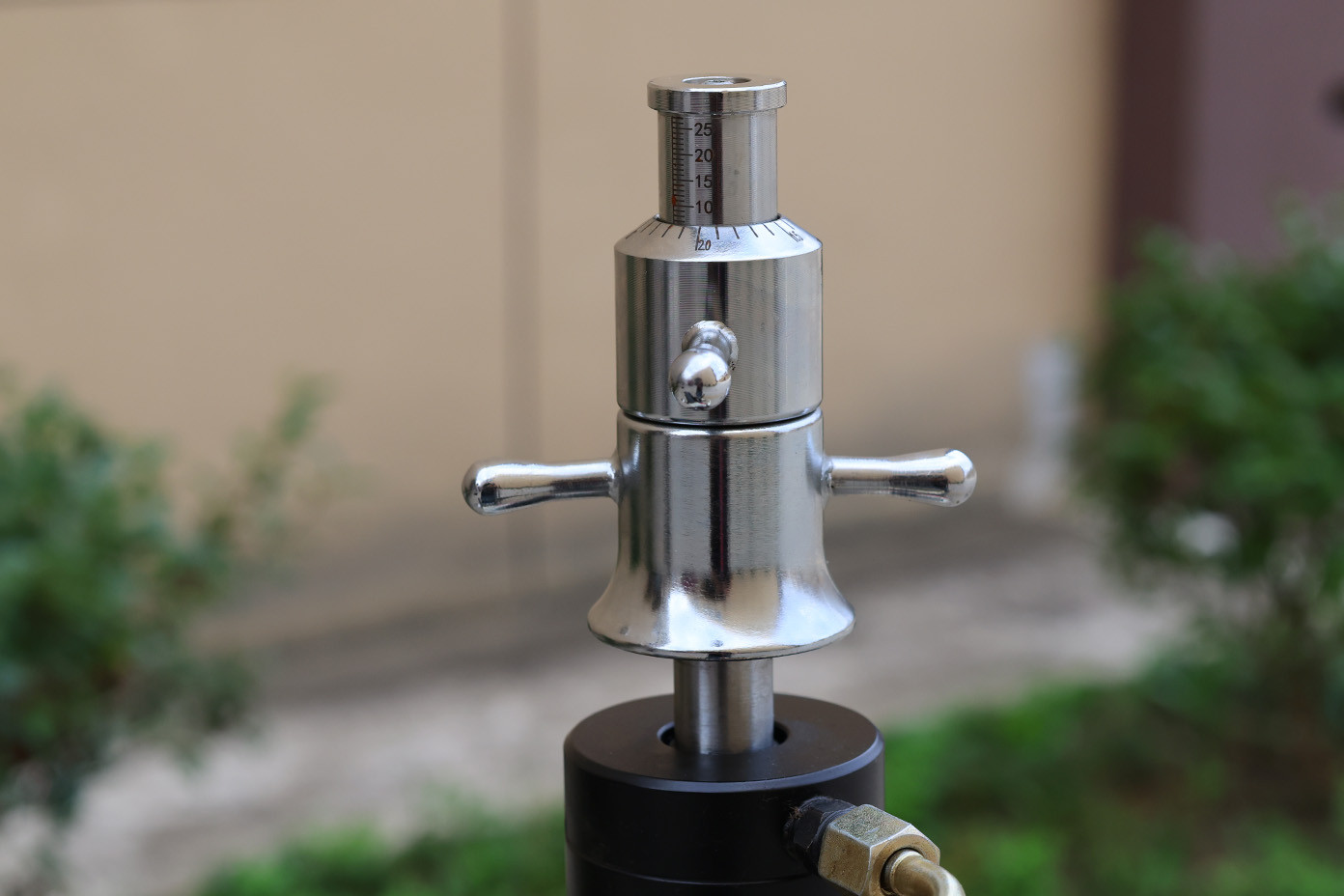

Built-in groove depth adjusting rod
Casting part
Reinforced cast iron housing for hydraulic pump, roller sets, pipe stabilizer
Support color customization
Balanced structure withstands tough jobs
Base & Parts

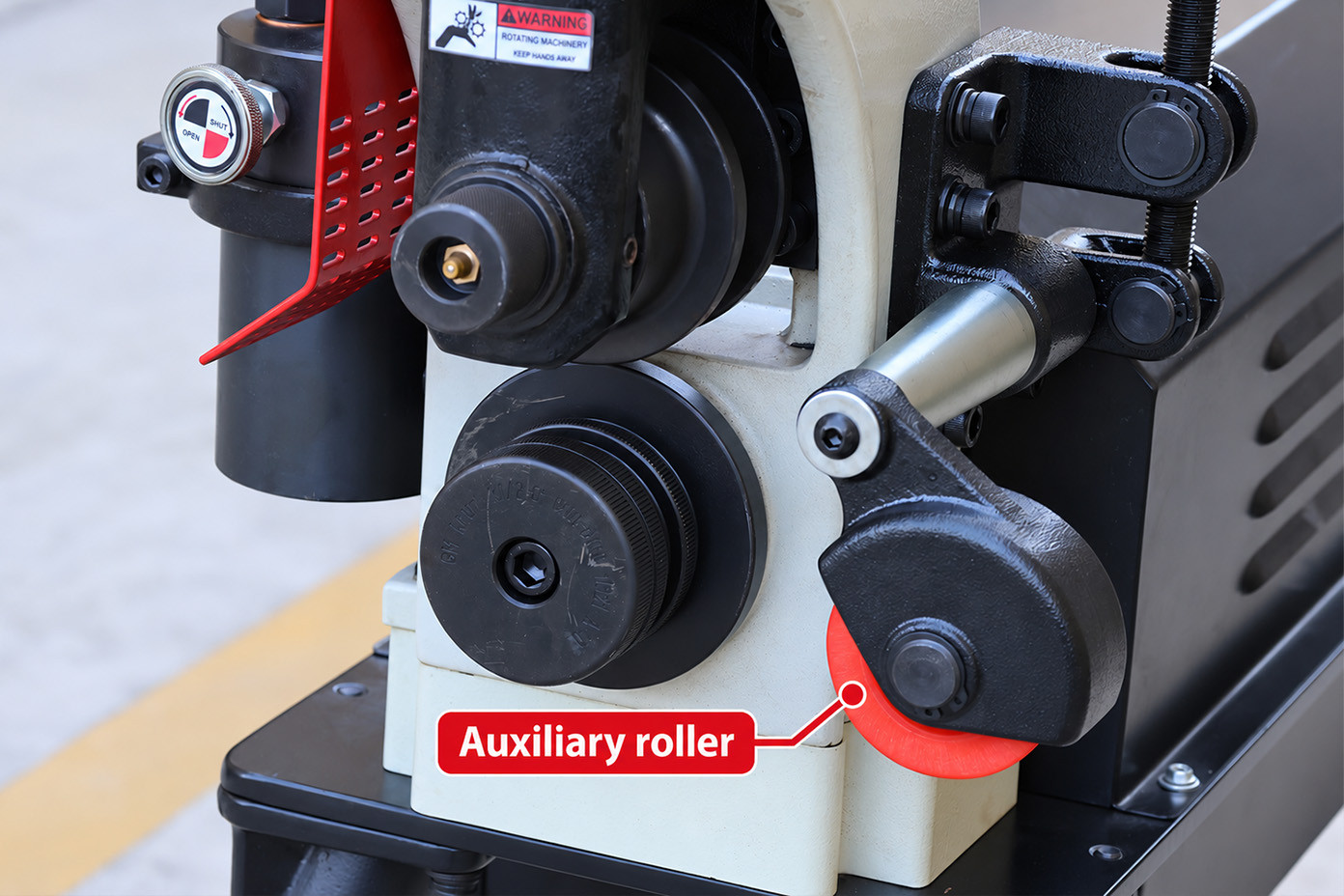

Pipe stabilizer ① to prevent pipe slipping; Steel tube bracket ② Full closed hydraulic feeding pump ③ High-strength, solid and deformation-resistant.

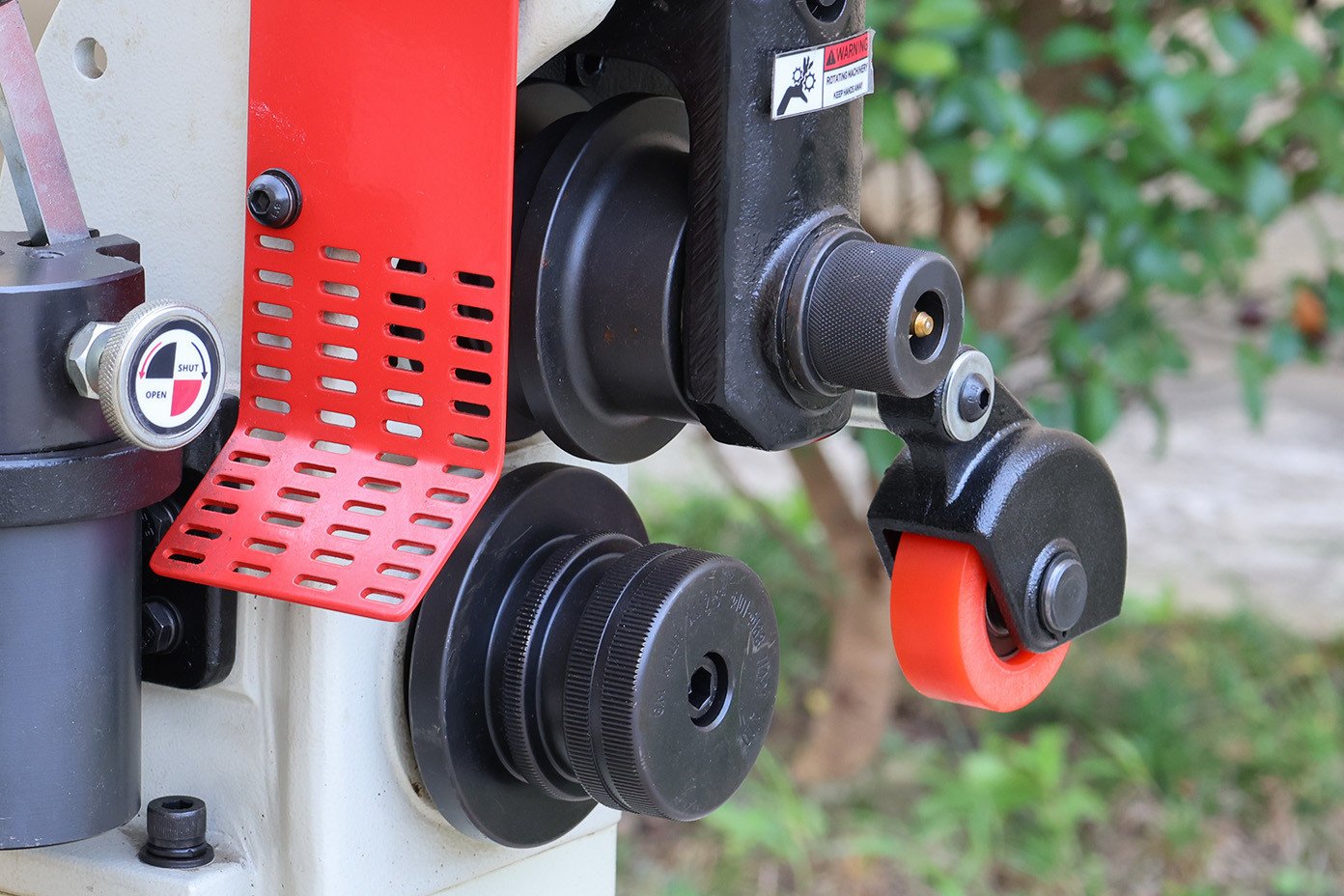

Roller Set
Strong and precise make the groove without deformation.
Roll Sets
Available in sizes: 2"-3",3 1/2"-6",8"-12"
For Steel pipe 2"-12",Pipe SCH10/SCH40
High strength steel, hardened to withstand long-time usage
Pipe Stand
Quick size adjustable rods, fine-machined slots with latch
Steel ball heads,for smooth rotation,forward-backward moving of pipe
Adjustable height to suit different size pipes:1"-12"

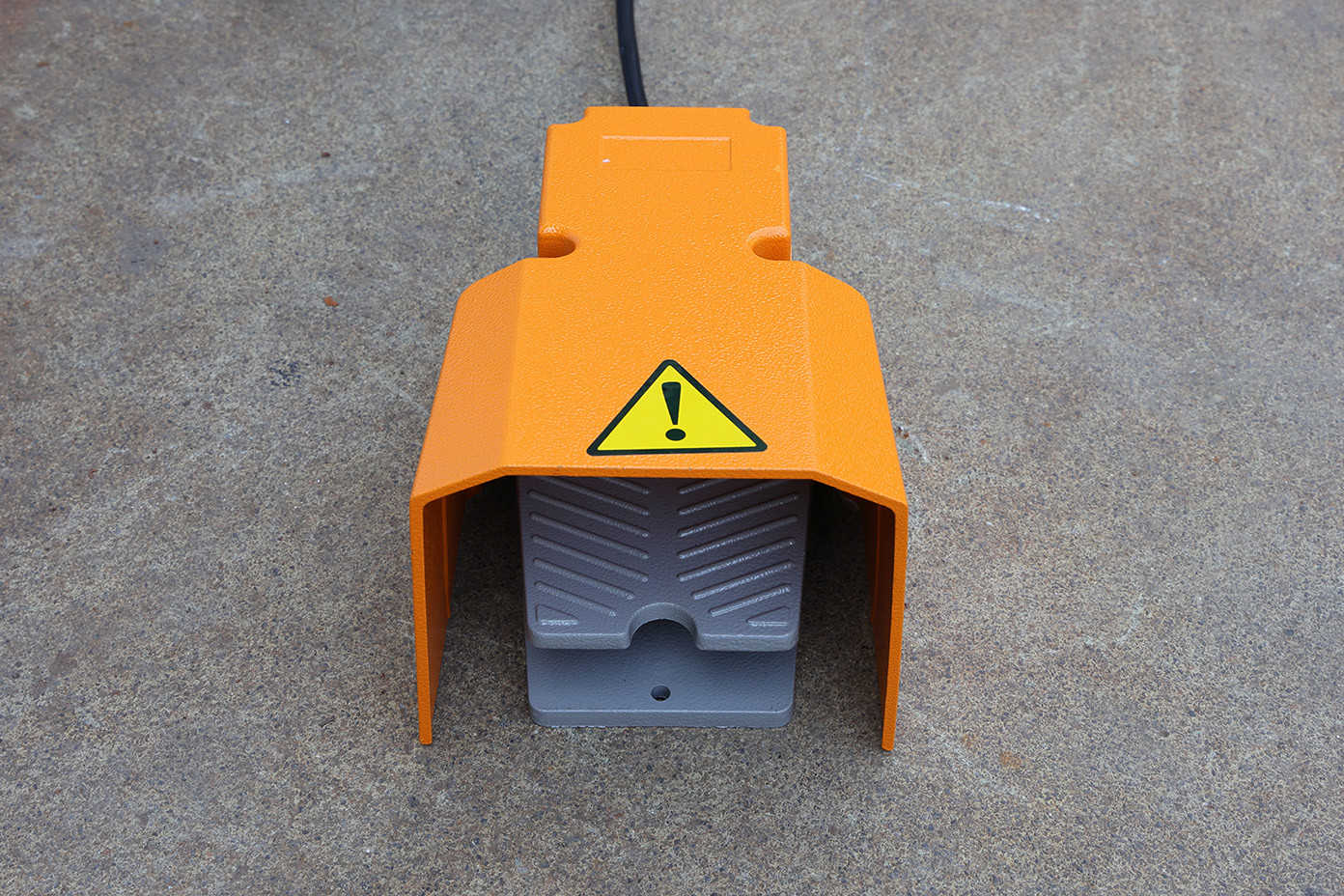

Foot Switch
Hydraulic Feeding Pump
